.: Smartphone Hisense Andromax R (HS8916QC) :.

After sharing experienced to use Smartphone with OS Windows Phone, now i'd shared experienced using Smartphone with OS Android 5.0.2 that is Hisense Andromax i46D1G or more known with Smartfren Andromax R with spesification : [Continue Reading]

Operating System (OS): Android 5.2 ( Lollipop )
Processor: Snapdragon 410 Quad Core 1.2 Ghz Cortex A53 Processor
Memory: 1GB RAM + 8 GB ROM
Storage: MicroSD Card up to 32 GB
Display: 5 inches Screen HD iPS OGS with Dragon Trail Glass (1080x720)
Camera: 8 MP AF Dual Flash (Rear), 5 MP LED Flash (Front)
Connectivity: 4G-LTE/EVDO/GSM, WiFi 802.11/B/G/N, Bluetooth v4.0, microUSB v2.0

For anyone who own Smartphone Android certain never be made confused when transfering data from handphone to PC or to other handphone because its easy to send file using mass storage or bluetooth devices ???

Many Android OEM offer it way to to open bootloader or more known with Unlocking and Rooting who make confused several and specially for the beginner or commonnly Android users to what must be done Unlocking and Rooting or not ???

Rooting is the process of allowing users of smartphones, tablets and other devices running the Android mobile operating system to attain privileged control (known as root access) over various Android subsystems. As Android uses the Linux kernel, rooting an Android device gives similar access to administrative (superuser) permissions as on Linux or any other Unix-like operating system such as FreeBSD or OS X.

Root access is sometimes compared to jailbreaking devices running the Apple iOS operating system. However, these are different concepts: Jailbreaking is the bypass of several types of Apple prohibitions for the end user, including modifying the operating system (enforced by a "locked bootloader"), installing non-officially approved applications via sideloading, and granting the user elevated administration-level privileges (rooting). Only a minority of Android devices lock their bootloaders, and many vendors such as HTC, Sony, Asus and Google explicitly provide the ability to unlock devices, and even replace the operating system entirely. Similarly, the ability to sideload applications is typically permissible on Android devices without root permissions. Thus, it is primarily the third aspect of iOS jailbreaking (giving users administrative privileges) that most directly correlates to Android rooting.

Advantages

Support for themes, allowing everything to be visually changed from the color of the battery icon, to the boot animation that appears while the device is booting, and more.
Full control of the kernel, which, for example, allows overclocking and underclocking the CPU and GPU.
Full application control, including the ability to backup, restore, or batch edit applications, or to remove bloatware that comes pre-installed on many phone.
Custom automated system-level processes through the use of third-party applications.
Ability to install a custom firmware (also known as a custom ROM) that allows additional levels of control on a rooted device.

Rooting Varieties

The process of rooting varies widely by device, but usually includes exploiting one or more security bugs in the firmware of (i.e., in the version of the Android OS installed on) the device. Once an exploit is discovered, a custom recovery image can be flashed which will skip the digital signature check of firmware updates. Then a modified firmware update can be installed which typically includes the utilities needed to run apps as root. For example, the su binary can be copied to a location in the current process' PATH (e.g., /system/xbin/) and granted executable permissions with the chmod command. A third-party s upervisor application, like Superuser or SuperSU, can then regulate and log elevated permission requests from other applications. Many guides, tutorials, and automatic processes exist for popular Android devices facilitating a fast and easy rooting process.

Conclusion

For any user that do not need administration-level privileges and own financial excess do not need it Unlocking and Rooting also not suggested by the most of Smartphone Android vendor.

[EXPERiMENTAL] Andromax R (HS8916QC) [Show]

Posted by home7ech | Last Update March 20, 2016

.: iMPORTANT NOTiCES [Show] !!! :.

Sorry for my bad english, i will only use the words i already know for this article. To all of visitor i'd really sorry for any inconvenience !!!
Testing new roms, kernels or other tweaks is, at least in my opinion, part of the whole Android experience. But sometimes things go wrong. First of all: Don’t panic! In contrast to iOS or Windows Phones, Android is a rather open operating system which makes fixing a soft- bricked device sometimes really easy.
You can revive your device as long as it is only soft-bricked! But beware, depending on your device it can be quite tricky to fix a soft- brick. A rule of thumb is that every device with an unlockable boot loader and accessible stock files.
In most cases something went wrong while flashing something like a custom ROM, camera mod or app in your custom recovery mode. Because of this, your device is not booting anymore (the so-called bootloop) or is constantly crashing. The basic solution to this problem is flashing a clean & working version of Android to your device. There are different ways for doing this, but most of the time you’ll restore a backup, flash a custom ROM or stock images to your device. (By Philipp Greitsch).
Avoiding stuck in bootloop, softbrick/hardbrik without USB Debugging issues for Andromax R (HS8916QC) or any Android Devices that lack of options in Stok Recovery ROM, i'd suggested to used Custom TWRP (recommended) or CWM Recovery that allready rooted and support for USB Debugging functionality, which means ADB commands work while your Android device is recovery mode. !!!

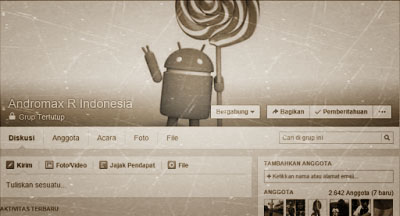

I have some references for you. these groups its fulfilling to reviews about Andromax R (HS8916QC). Starting from ROOT, ROM, Game, even Tweaks that given by the developer. but beware, you must carefully to join with some group that exist in Facebook specially. Because recently a lot of group with the same title discuss a certain devices but in the inside also a lot of spam or rubbish. In this occasion i found several group and related articles that the most relevant at the end (bottom) of the pages.
Please make a backup of your device before installing or updating ROM !!!

.: TODO :.

Repair Corrupt, Bad or Incorrect MEID/ESN Number.

Any idea how to create or edit a new (loss) Meid/Imei and others iD.
Your ideas or suggestion will be appreciated :)
Thanks.

.: [EXPERiMENTAL] Log Files (March 20, 2016) [Show] :.

.: [EXPERiMENTAL] Log Files (March 15, 2016) [Show] :.

.: [EXPERiMENTAL] Log Files (March 9, 2016) [Show] :.

TECHNiCAL DiFFiCULTiES iSSUES (CASES)

I was a noobs and newbies user for android smartphone, I bought Andromax R (i46D1G) with OS Android 5.02 and testing to flashing flashing Stok Recovery ROM with Custom TWRP Recovery the rooting using KingRoot and Flashing with Custom Boot ROM, it work fine.
Then i'd try to Rollback to Stock Boot and Recovery ROM, removing or flashing TWRP Recovery ROM with Stock Recovery ROM (i'm not aware that Stock Recovery ROM is diffrent than commonly Stock ROM Recovery Mode), anyway it work fine. But sometimes things go wrong when restored or flashing Stock Boot ROM using Rashr - Flash Tool 2.3.10 (APK) as "kernel" and get stuck in Bootloop without "USB Debugging" functionality to reset the "Bootloader Unlocked".
.: FYi: Stock Boot and Recovery ROM Andromax R (i46D1G) :.
* Software Version: i46D1G_L1074L.6.04.02.iD11
» File Name: fastboot_i46D1G.7z ==> Stock Boot ROM
» Size: 9.79 MiB (10,267,017 bytes)
» SHA1: F521597F71E543AFEEB70D519DF0C57C09582FD0
» Share Link: Mega Cloud
» File Name: recovery_i46D1G.7z ==> Stock Recovery ROM
» Size: 8.01 MiB (8,402,638 bytes)
» SHA1: 8ECCC2F3080858AB6AF20C28B63DA88635191C05
» Share Link: Mega Cloud

KNOWN BUG

Can't turn on "USB Debugging" functionality to do a recovery because "Bootloader Locked" and "Stock ROM Recovery Mode" only had two options?
------------------------------------
» reboot system now
» wipe data/factory reset
------------------------------------
"Commonly Stock ROM Recovery Mode" has options...
------------------------------------
» reboot system now
» apply update from ADB
» wipe data/factory reset
» wipe cache partition
------------------------------------
Recovery via Android Debug Bridge (ADB) and/or Fastboot Commands ???
As I'm sure you're aware, ADB does not work with/for Fastboot/Bootloader mode...
» Root permissions and ADB Shell is not present.
» File system restricted and denied access.
» List of devices attached [Show Screeenshot]
Recovery via TF card (MicroSD Card) Failed...
» Could not read signature file!
» Read Signature or Flag File error!
.: FYi: Andromax R (i46D1G) ROM and Debug Files are Used :.
» ROM Files: http://pasted.co/fc3b831f
» Debug Files: http://pasted.co/ff13b4f0
Computer does not recognise the devices in Normal Mode (Bootloop) except Test Mode by press Vol.up + Power button and plug-in the USB Cable until recognised ???

.: [EXPERiMENTAL] Log Files (February 26, 2016) [Show] :.


KNOWN BUG [Show Screeenshot]

System NOT Updated (current version: L1074L.6.04.02.ID11 can be upgraded to L1074L.6.05.02.ID11).
Remove Custom ROM Boot.img and Remove Root Andromax R (i46D1G).
Superuser Binary Files: Installed
Result: -rwxr-xr-x root root 159472 2016-01-29 01:14 su
Version: 3.54:kinguser_su
Analysis:
» Root user ownership is present and stuid attribute is not present.
» File system permissions restricted and denied access.

SOLVED:

Rollback stock ROM Recovery.img Andromax R (i46D1G) or Remove TWRP Recovery.img [Show Screeenshot]

HOW-TO:
Disclaimer: DWYOR (Do With Your Own Risk)
Required:
» Stock ROM Recovery.img (i46D1G)

- File Name: recovery_i46D1G.7z
- Software Version: i46D1G_L1074L.6.04.02.iD11
- Size: 8.01 MiB (8,402,638 bytes)
- SHA1: 8ECCC2F3080858AB6AF20C28B63DA88635191C05
- Share Link: Mega Cloud
» Terminal Emulator APK (Material Terminal v2.03)
1. install Terminal Emulator APK then enter the code sequentially :

  su --> [enter]
  dd if=/sdcard/i46D1G_recovery.img of=/dev/block/mmcblk0p29 --> [enter, wait until completed]
  reboot recovery --> [enter]

  Note:
  if system go bootloop, turn off by pull out the battery (this was the most tedious part for a crappy back cover). Then pull back in the battery turn on by press button power + volume down to enter Stock ROM Recovery Mode.
2. After reboot on screen will look like this :

  product: i46D1G
  System status: rooted!
  Long press power key to continue ...
3. Recovery Mode Stock ROM Andromax R (i46D1G) will look as follow : :

  Android system recovery
  LRX22G release-keys

  Volume up/down to move highlight;
  enter buton to select.

  reboot system now >
  wipe data/factory reset >

  Note:
  After Factory Data Reseted succesfully then reboot the system.
4. Now stock ROM Recovery Andromax R (i46D1G) should be installed or TWRP Recovery removed successfuly.
5. Hope that help :)
Remove or Uninstall Root Permission [Show Screeenshot]

HOW-TO:
» Disclaimer: DWYOR (Do With Your Own Risk)
» Required: KingRoot APK
1. Install the latest KingRoot APK and open it.
  * Recommended to read KingRoot Instructions first : Menu > About app > Instructions.
2. Go to Menu > General Setting > Uninstall KingRoot --> Continue, then wait until removing root permission completed (system may be rebooted during process of removing removing root permission).
3. After all process successfully completed, now system should be unrooted.
  Note:
  FYi: if the devices rooted by custom ROM, this is not permanent the system will back to rooted! whether is advantages or disadvantages may be differ for some user ?
4. Hope that help :)
